G7 Series

High performance, 3-level control, world specifications.
The G7 is a high-performance general-purpose inverter designed for the world's usage environments, and the first general-purpose inverter with a 3-level control method in the 400 V class — removing micro-surge voltage problems so it can be used safely with existing motors. Complete energy-saving control and rich functionality meet high technical demands.
Find your drive

KEY BENEFITS

Limitless possibilities

Flexibility, ease of use, and a sustainable design offer the best value proposition for your application.

DETAIL FEATURES

Environmentally friendly

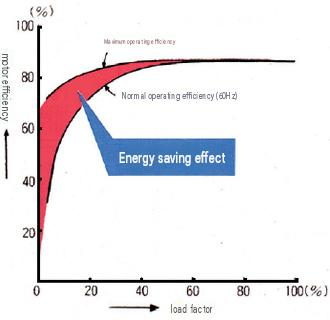

Energy-saving control estimates and trims the power the machine actually needs, and harmonic countermeasures are built in without extra external equipment.

Environmentally friendly – figure 1

DETAIL FEATURES

World specifications

The G7 covers the world’s major standards, a wide range of power supplies and the main field networks, and ships with a digital operator available in seven languages.

World specifications – figure 1

DETAIL FEATURES

High level control performance

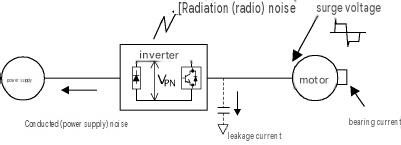

Yaskawa was the first to apply a 3-level control method to a general-purpose inverter in the 400 V class, solving micro-surge voltage and making the drive safe to use with existing motors.

High level control performance – figure 1

DETAIL FEATURES

User friendly

Support software, standard copy functions and clear maintenance features reduce the time needed for setup, adjustment and troubleshooting.

User friendly – figure 1
User friendly – figure 2
User friendly – figure 3

TECHNICAL DATA

Key specifications

The numbers behind the benefits — full tables in the datasheet.
Voltage class
3-phase 200–240 V · 380–480 V
Control method
3-level control (world's first in a general-purpose 400 V inverter)
Max. output frequency
up to 400 Hz (with constant settings)
Overload capacity
150% / 60 s
Operator
digital operator available in 7 languages
Compatibility
world standards, major field networks, wide range of power supplies

Download Technical documents

You can download data such as catalogs and manuals

PRODUCT LINEUP

G7 Series

Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.

Get started with YASKAWA drives

Not sure which drive fits your machine? Send us your application — Yaskawa Vietnam engineers will help you size, configure and commission the right drive.
