V1000 Series

The easy inverter — smallest in class, simple to set up.
V1000 was born from Yaskawa's inverter experience with a single focus: ease of use. It offers best-in-class performance in the world's smallest class, drives synchronous motors as well as induction motors, and removes complicated parameter work with dedicated setup functions.
Find your drive

KEY BENEFITS

Limitless possibilities

Flexibility, ease of use, and a sustainable design offer the best value proposition for your application.

DETAIL FEATURES

Easy to use

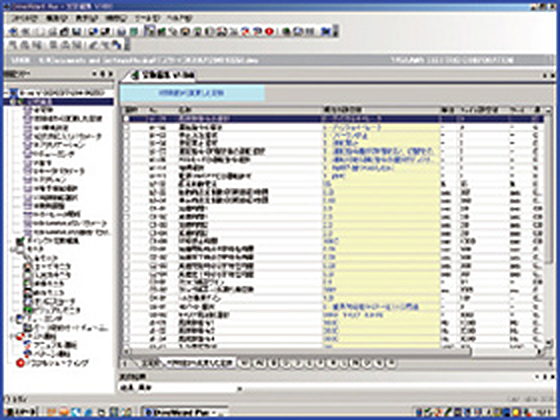

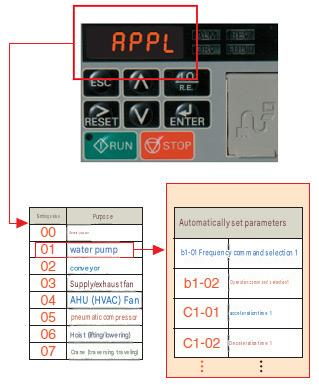

Dedicated software functions and clear parameter structure remove the need for manual tuning, so a basic setup is quick even for first-time users.

Easy to use – figure 1
Easy to use – figure 2
Easy to use – figure 3

DETAIL FEATURES

World's smallest class

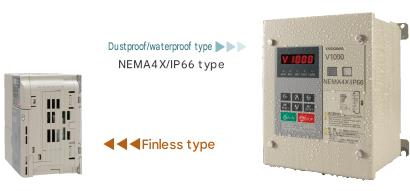

A compact chassis and a wide lineup let the drive fit the machine instead of the machine being changed to fit the drive.

World's smallest class – figure 1
World's smallest class – figure 2
World's smallest class – figure 3

DETAIL FEATURES

Dedicated inverter features

Alongside induction motors, V1000 drives synchronous motors, and parameter customisation lets the drive be adapted to the machine’s own requirements.

Dedicated inverter features – figure 1
Dedicated inverter features – figure 2
Dedicated inverter features – figure 3

DETAIL FEATURES

Environmental consideration

Energy-saving control and careful component selection lower running consumption and make the drive easier on its environment.

Environmental consideration – figure 1
Environmental consideration – figure 2
Environmental consideration – figure 3

TECHNICAL DATA

Key specifications

The numbers behind the benefits — full tables in the datasheet.
Voltage class
3-phase or single-phase input, 200–240 V · 3-phase 380–480 V
Control method
V/f · open loop vector · PM open loop vector
Max. output frequency
400 Hz (parameter-settable)
Overload capacity
150% / 60 s (HD) · 120% / 60 s (ND)
Carrier frequency
2 kHz default, up to 15 kHz
Motor types
induction · synchronous

Download Technical documents

You can download data such as catalogs and manuals

PRODUCT LINEUP

V1000 Series

Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.

Get started with YASKAWA drives

Not sure which drive fits your machine? Send us your application — Yaskawa Vietnam engineers will help you size, configure and commission the right drive.
