General-purpose Inverters
Browse our General-purpose Inverters portfolio
Every series shares the same Yaskawa motor control and long-life design — the difference is power range, networking and how specialised the application is.
GA700 Series
One drive. Every application.
Induction, permanent magnet or synchronous reluctance motors — one drive runs them all, cuts your energy bill and simplifies every automation job.
Technical Features
Voltage class: 3-phase 200–240 V · 380–480 V
Power range: 0.4–110 kW (200 V) · 0.4–630 kW (400 V)
Max. output frequency: 590 Hz
Overload capacity: 150% / 60 s (HD) · 110% / 60 s (ND)
Speed control range: 1:1500 (closed loop)
Enclosure: IP20 / UL Open · NEMA Type 1 kit optional
Ambient temperature: -10 to +50 °C (up to 60 °C with derating)
Functional safety: STO SIL3/PLe · EDM · TÜV certified
GA500 Series
The compact drive that never stops your machine.
The GA500 is Yaskawa's compact high-performance microdrive, developed around three ideas — versatility, ease of use and reliability — with innovative PM motor control and industry-leading 590 Hz output. It is built for general industrial machinery and equipment, and packaged so it fits where other drives will not.
Technical Features
Voltage class: 3-phase 200–240 V · 380–480 V
Max. output frequency: 590 Hz
Overload capacity: 150% / 60 s (HD) · 110% / 60 s (ND)
Carrier frequency: up to 15 kHz (with output-current derating)
Motor types: induction · permanent magnet · synchronous reluctance
Enclosure: IP20 (side-by-side mounting, NEMA Type 1 kit optional)
G7 Series
High performance, 3-level control, world specifications.
The G7 is a high-performance general-purpose inverter designed for the world's usage environments, and the first general-purpose inverter with a 3-level control method in the 400 V class — removing micro-surge voltage problems so it can be used safely with existing motors. Complete energy-saving control and rich functionality meet high technical demands.
Technical Features
Voltage class: 3-phase 200–240 V · 380–480 V
Control method: 3-level control (world's first in a general-purpose 400 V inverter)
Max. output frequency: up to 400 Hz (with constant settings)
Overload capacity: 150% / 60 s
Operator: digital operator available in 7 languages
Compatibility: world standards, major field networks, wide range of power supplies
A1000 Series
Quiet, beautiful and powerful current vector control.
A1000 is Yaskawa's current vector control general-purpose inverter: a high-quality drive that is quiet, beautiful and powerful, combining top-class performance with environmental design. It drives both induction motors and synchronous motors, sharing one inverter inventory.
Technical Features
Voltage class: 3-phase 200–240 V · 380–480 V
Control method: current vector control, encoderless positioning
Max. output frequency: 400 Hz
Overload capacity: 150% / 60 s (HD) · 120% / 60 s (ND)
Carrier frequency: 1 to 15 kHz
Motor types: induction · synchronous (shared inverter inventory)
V1000 Series
The easy inverter — smallest in class, simple to set up.
V1000 was born from Yaskawa's inverter experience with a single focus: ease of use. It offers best-in-class performance in the world's smallest class, drives synchronous motors as well as induction motors, and removes complicated parameter work with dedicated setup functions.
Technical Features
Voltage class: 3-phase or single-phase input, 200–240 V · 3-phase 380–480 V
Control method: V/f · open loop vector · PM open loop vector
Max. output frequency: 400 Hz (parameter-settable)
Overload capacity: 150% / 60 s (HD) · 120% / 60 s (ND)
Carrier frequency: 2 kHz default, up to 15 kHz
Motor types: induction · synchronous

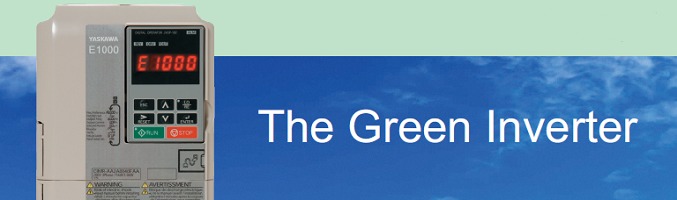

E1000 Series
The fan, pump and HVAC drive built for energy savings.
E1000 is Yaskawa's AC drive dedicated to fan, pump and HVAC applications. It drives induction and synchronous motors, optimises the drive to load and temperature changes, and is built for energy-saving operation, easy maintenance and safety in building services.
Technical Features
Voltage class / power range: 400 V class, 0.75 to 630 kW
Control method: V/f control · vector control for PM motor
Frequency control range: 0.01 to 200 Hz
Output frequency resolution: 0.001 Hz
Starting torque: 150% / 3 Hz (V/f) · 100% / 5% speed for PM (vector)
Speed control range: 1/40 (V/f) · 1:20 for PM (vector)
Motor protection: electronic thermal protection
U1000 Series
Regenerative matrix converter — no harmonics, no extra panel.
U1000 is Yaskawa's low-harmonics regenerative matrix converter (CIMR-UC). Highly efficient AC-to-AC direct conversion, a built-in power regeneration function and matrix topology keep THDi within IEEE 519 limits with a fraction of the footprint and weight of a 12-pulse system — with no harmonic filter or braking unit in the panel.
Technical Features
Type: CIMR-UC — low harmonics regenerative matrix converter
Input power phases: 3-phase
Motor type: Permanent magnet motor · Induction motor
Max output frequency: 400 Hz
Overload tolerance: 150% for 60 s (HD) · 120% for 60 s (ND)
Safety: SIL3 · PL e · Enclosure IP00
Ambient temperature: -10 to +40 °C (50 °C with derating)
Standards: CE · RoHS · UL · GL · UKCA
PRODUCT LINEUP
General-purpose Inverters
Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.
