GA700 Series

One drive. Every application.
Induction, permanent magnet or synchronous reluctance motors — one drive runs them all, cuts your energy bill and simplifies every automation job.
Find your drive

KEY BENEFITS

Limitless possibilities

Flexibility, ease of use, and a sustainable design offer the best value proposition for your application.

DETAIL FEATURES

Performance & Energy

One drive, every motor — and a lower energy bill. Yaskawa’s motor control runs induction, permanent-magnet and synchronous-reluctance motors on the same unit, while new energy-saving control cuts consumption further.

One drive for induction, PM and synchronous reluctance motors
200% starting torque at zero speed, without an encoder
Torque characteristics — PG-less advanced vector control
Fourth energy-saving method

DETAIL FEATURES

Easy setup

Setup in 5 minutes with intuitive wizard navigation and full smartphone cloud connectivity.

Setup Wizard in 13 languages
DriveWizard Mobile with QR Code
Yaskawa Drive Cloud backup

DETAIL FEATURES

Easy integration

Seamless integration into open industrial architectures with built-in protocols.

Embedded RS-485 and fieldbus options
Multi-drive control with single option card

DETAIL FEATURES

Reliable & Safe

Engineered for continuous 24/7 industrial uptime with certified functional safety.

Conformal coating Class 3C2/3S2
STO SIL3/PLe functional safety
10-year maintenance-free design

TECHNICAL DATA

Key specifications

The numbers behind the benefits — full tables in the datasheet.
Voltage class
3-phase 200–240 V · 380–480 V
Power range
0.4–110 kW (200 V) · 0.4–630 kW (400 V)
Max. output frequency
590 Hz
Overload capacity
150% / 60 s (HD) · 110% / 60 s (ND)
Speed control range
1:1500 (closed loop)
Enclosure
IP20 / UL Open · NEMA Type 1 kit optional
Ambient temperature
-10 to +50 °C (up to 60 °C with derating)
Functional safety
STO SIL3/PLe · EDM · TÜV certified

PRODUCT LINEUP

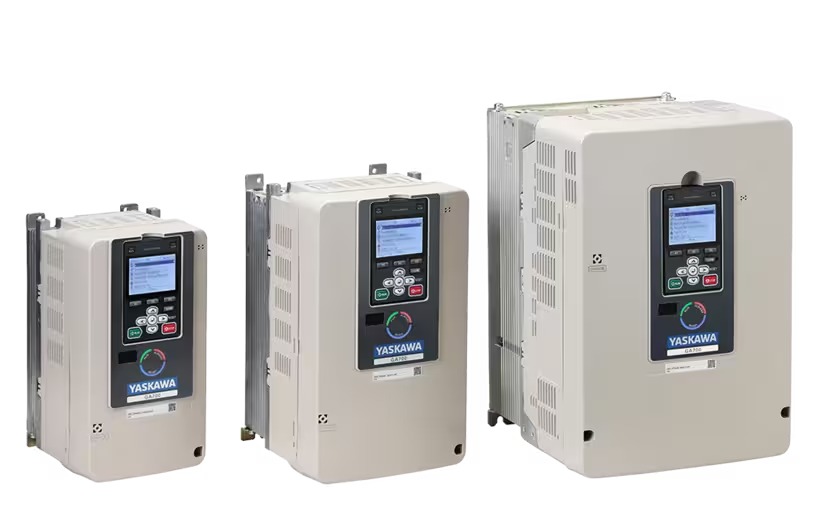

GA700 Series

Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.

Get started with YASKAWA drives

Not sure which drive fits your machine? Send us your application — Yaskawa Vietnam engineers will help you size, configure and commission the right drive.
