R1000 Series

Regenerative braking unit — energy back, not burned.
R1000 is Yaskawa's regenerative braking unit: it returns braking energy to the power supply instead of dissipating it as heat, saving energy in applications with frequent braking. Combined with a drive it also improves power quality.
Find your drive

KEY BENEFITS

Limitless possibilities

Flexibility, ease of use, and a sustainable design offer the best value proposition for your application.

DETAIL FEATURES

Increased braking power

Braking energy is returned to the power supply rather than burned in resistors, so braking duty is no longer limited by heat dissipation.

Increased braking power – figure 1
Increased braking power – figure 2

DETAIL FEATURES

Save even more energy

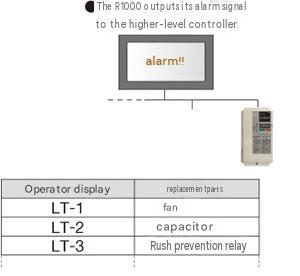

Returned braking energy reduces total consumption directly, and component selection plus preventive maintenance information keeps the unit reliable over a long service life.

DETAIL FEATURES

Respond to various requests

Parameter management, monitoring and troubleshooting are handled from a PC, and the unit supports global business requirements.

Respond to various requests – figure 1
Respond to various requests – figure 2
Respond to various requests – figure 3

TECHNICAL DATA

Key specifications

The numbers behind the benefits — full tables in the datasheet.
Function
regenerative braking unit — braking energy returned to the power supply
Max. applicable motor capacity
3.7 to 18.5 kW (200 V class lineup)
Input power supply
3-phase 200–240 V, 50/60 Hz
Rated power supply current
10 to 50 A
Protection
instantaneous overcurrent (~250% of rated supply current)
Ambient temperature
−10 to +40 °C

Download Technical documents

You can download data such as catalogs and manuals

PRODUCT LINEUP

R1000 Series

Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.
