D1000 Series
Sinusoidal PWM converter — clean power for your drives.
D1000 is a sinusoidal PWM converter with power regeneration. Combined with an inverter it realises high power factor operation and clears power supply harmonic problems. It is designed for a compact panel, worldwide application and lower maintenance cost.
Find your drive
KEY BENEFITS
Limitless possibilities
Flexibility, ease of use, and a sustainable design offer the best value proposition for your application.
DETAIL FEATURES
Improve power quality
The sinusoidal PWM converter cleans the current drawn by the drive system, so harmonics stay inside limits and the supply equipment can be downsized.
Improve power quality – figure 1
Improve power quality – figure 2
Improve power quality – figure 3
DETAIL FEATURES

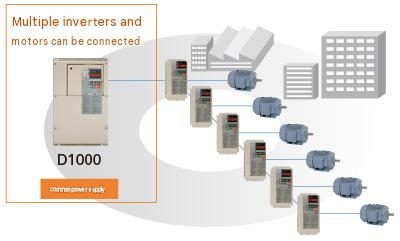

Respond to various requests

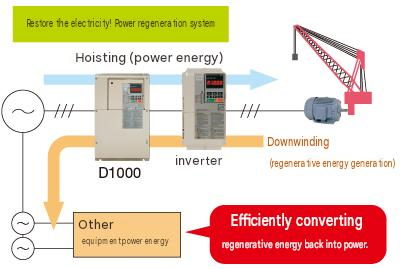

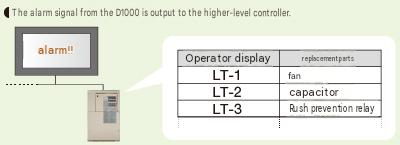

Regeneration saves energy in braking-heavy applications, maintenance information is available through monitors and software, and the converter can be applied globally.
Respond to various requests – figure 1
Respond to various requests – figure 2
Respond to various requests – figure 3
TECHNICAL DATA
Key specifications
The numbers behind the benefits — full tables in the datasheet.
Function
sinusoidal PWM converter with power regeneration
Max. applicable motor capacity
3.7 to 110 kW (200 V class) · 3.7 to 560 kW (400 V class)
Rated output voltage
DC 330 V
Power supply imbalance rate
±2%
Protection
instantaneous overcurrent (~250% of rated input current)
Ambient temperature
−10 to +50 °C (IP00 / IP20)
Download Technical documents
You can download data such as catalogs and manuals

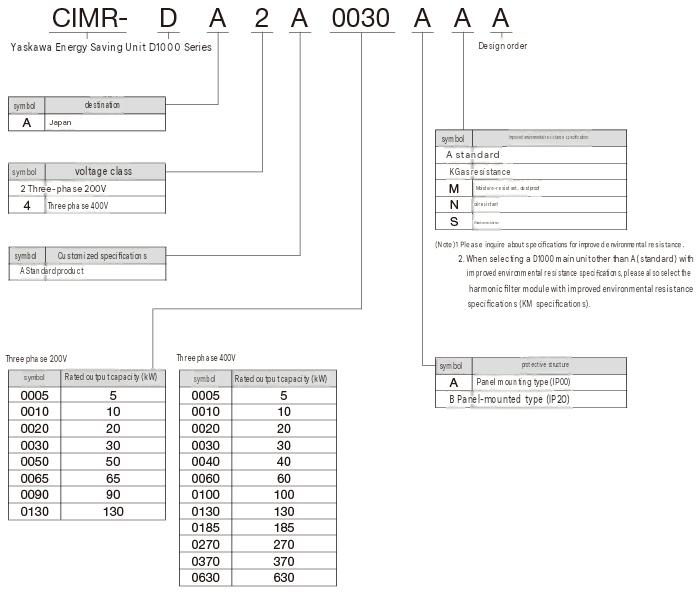

PRODUCT LINEUP
D1000 Series
Every rating in the series. Filter by voltage class or power range, then open a model for the full data sheet.
Category
Get started with YASKAWA drives
Not sure which drive fits your machine? Send us your application — Yaskawa Vietnam engineers will help you size, configure and commission the right drive.
