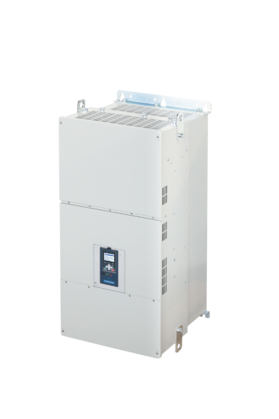

CIPR-CR70T4453BBA

CR700 Series
CIPR-CR70T4605BBA

Overview

Continuous improvements of the key functions for crane applications has won the trust of our customers for over 30 years. The CR700 balances the hoist application in perfection. Made possible by innovative design advantages the CR700 crane drive helps you to lower initial investment for factory construction, supports you by increasing your productivity, lowers the efforts for daily maintenance and helps to reduce energy consumption.

Technical Details

Input power supply

400 V

Rated output current (HD)

453 A

50% ED Rated Output Current

x No

Overload Tolerance (ND)

120 % for 60 s

Overload Tolerance (HD)

150 % for 60 s

Max. applicable motor power (HD)

250 kW

Input power phases

3-phase

EMC filter (embedded)

✓ Yes

Motor type

Induction motor

Encoder

✓ Yes

Standards compliance

CE, RoHS, UL, UKCA

Ambient Temperature (Min)

-10 °C

Ambient Temperature (Max)

50 °C

Height

1136 mm

Width

510 mm

Depth

480 mm

Weight

198 kg

Cooling method

Air cooling

Enclosure

IP20

Environmental Specifications

Standard

Analog Input

3

Analog Output

2

Digital Input

8

Digital Output

4

Safety Level

SIL3

Performance Level

PL e

Torque Control

Standard

Braking transistor

External

Motor Thermal Protection

Standard

Max Output Frequency

590 Hz
